What Are The Components Of Ready Mix Concrete Plant?

Notice: Undefined index: host in /home/wwwroot/php7.3/domain/eanmix/web/dm-content/themes/hi-domai/functions.php on line 278 Notice: Undefined index: host in /home/wwwroot/php7.3/domain/eanmix/web/dm-content/themes/hi-domai/functions.php on line 278 Notice: Undefined index: host in /home/wwwroot/php7.3/domain/eanmix/web/dm-content/themes/hi-domai/functions.php on line 278

1. For aggregate. A concrete batcher is for aggregate batching, it can weigh the aggregate accurately, which is good for produce quality concrete.

2. For powder. We use cement silos to store powder. Generally, we use cement and fly ash as storage bins. Of course, it all depends on which type of powder you need, you must choose the ideal powder for your project. For cement silos, we can provide you with horizontal cement silos, bolted type cement silos, welded type cement silos, and low-level cement silos. Also, we can produce a mobile cement silo for your requirement.

3. For liquid. We all know, a standard formula is water and additive, so you need to prepare a water pool and additive pump, pump this two liquid to their own weighing system.

4. Concrete mixing machine. We use JS series twin shaft concrete mixer and planetary concrete mixer, it is the most important part in the whole ready mix concrete equipment.

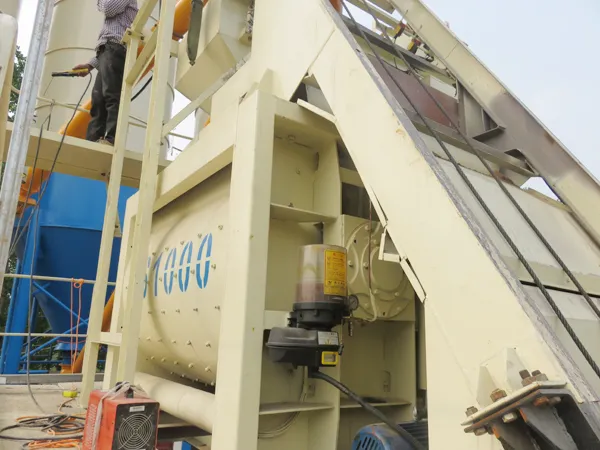

JS1000 Twin Shaft Concrete Mixer

5. Feeding device. As mentioned earlier, we have hopper type and belt type readymix concrete batching plants for sale, it is classified by this. But hopper type ready mix concrete batch plant is not efficient as belt type.

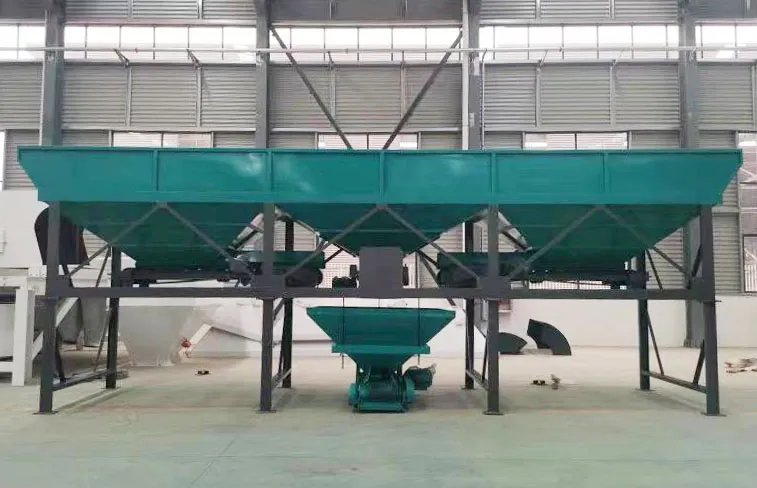

PLD Series Concrete batching machine

6. Pneumatic system: air compressor, air rope, pneumatic triplet. Pneumatic triple parts are mainly composed of a pressure-reducing valve, filter, and lubricator. Installed at the outlet of the air compressor gas.

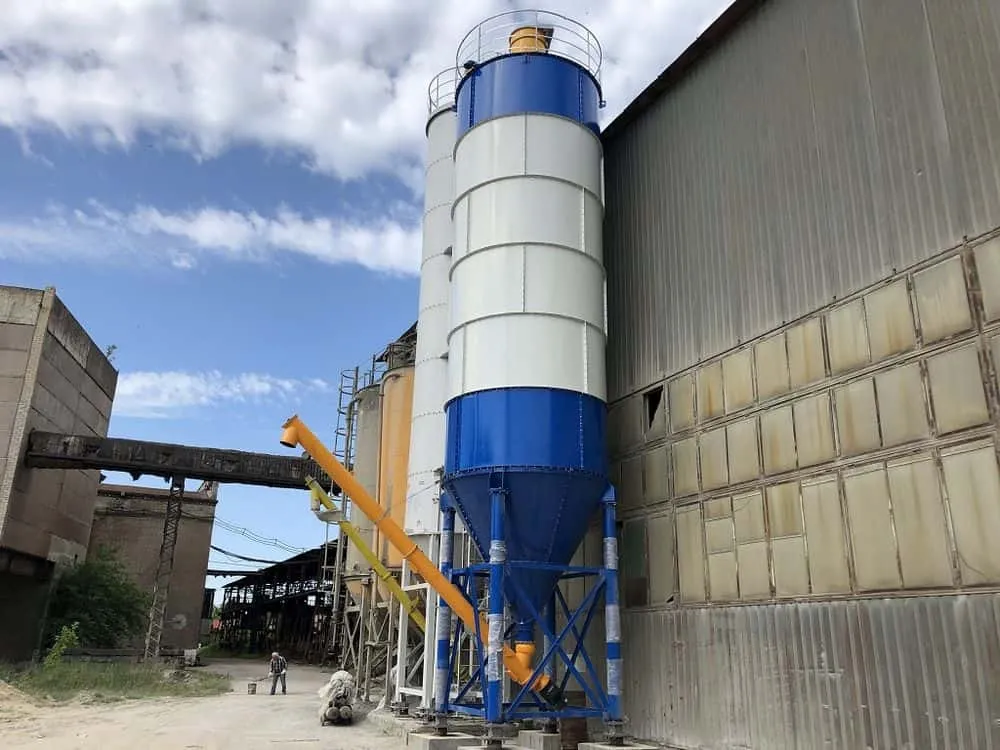

Cement silo

It plays the role of filtering, decompression, and oil mist in the pneumatic system. Filtration is to separate impurities such as condensed water and sludge in compressed air, make the compressed air get preliminary purification; decompression can adjust the outlet pressure through the triple piece; oil mist is sprayed oil mist lubrication air slide valve, etc.

7. Electric control system: control room, strong current cabinet, weak current console, air conditioner, etc.
